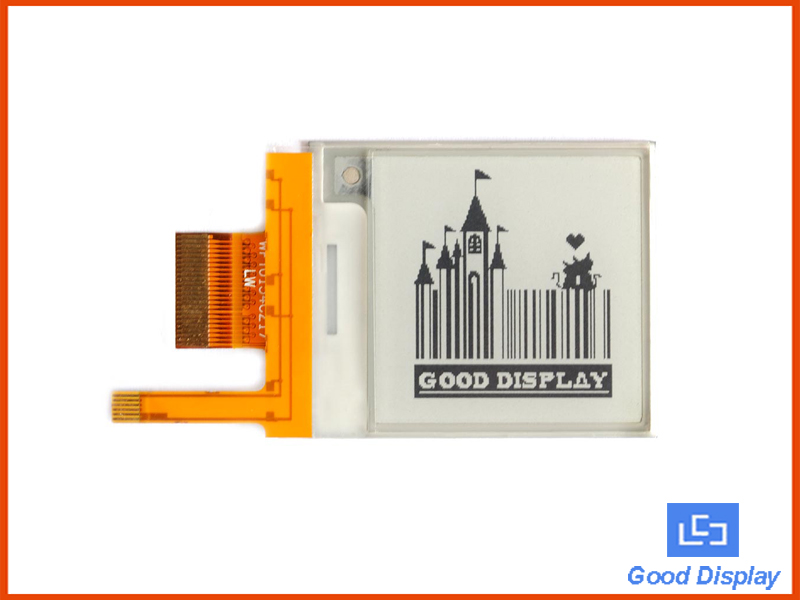

New 1.54 inch e-paper display partial refresh 4 Grayscale with frontlight GDEW0154T8-FL
  • Product Name: New 1.54 inch e-paper display with frontlight partial refresh 4 Grayscale  GDEW0154T8-FL
  • Code: 015412
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 131



This is a 1.54 inch backlit e-ink display,  4 grayscale e-paper display with frontlight, 152x152 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform, supports black and white. Support partial refresh, fast update and no flicker update.

In view of so many advantages: ultra low power consumption, near 180 degree view angle, 4 Grayscale， support partial refresh, GDW0154T8-FL is a very good choice for applications like shelf label, smart tags, wearable devices, smart home application, industrial instrument, smart cards and other related products, and it can be used in dark surrounding.







· Backlit e-ink display

· Partial refresh
· 152×152 resolution
· 4 Grayscale





· Development platform available STM32 / Arduino / Raspberry Pi / ESP8266



Part Number
GDEW0154T8-FL
Type
Dot Matrix
Resolution
152x152

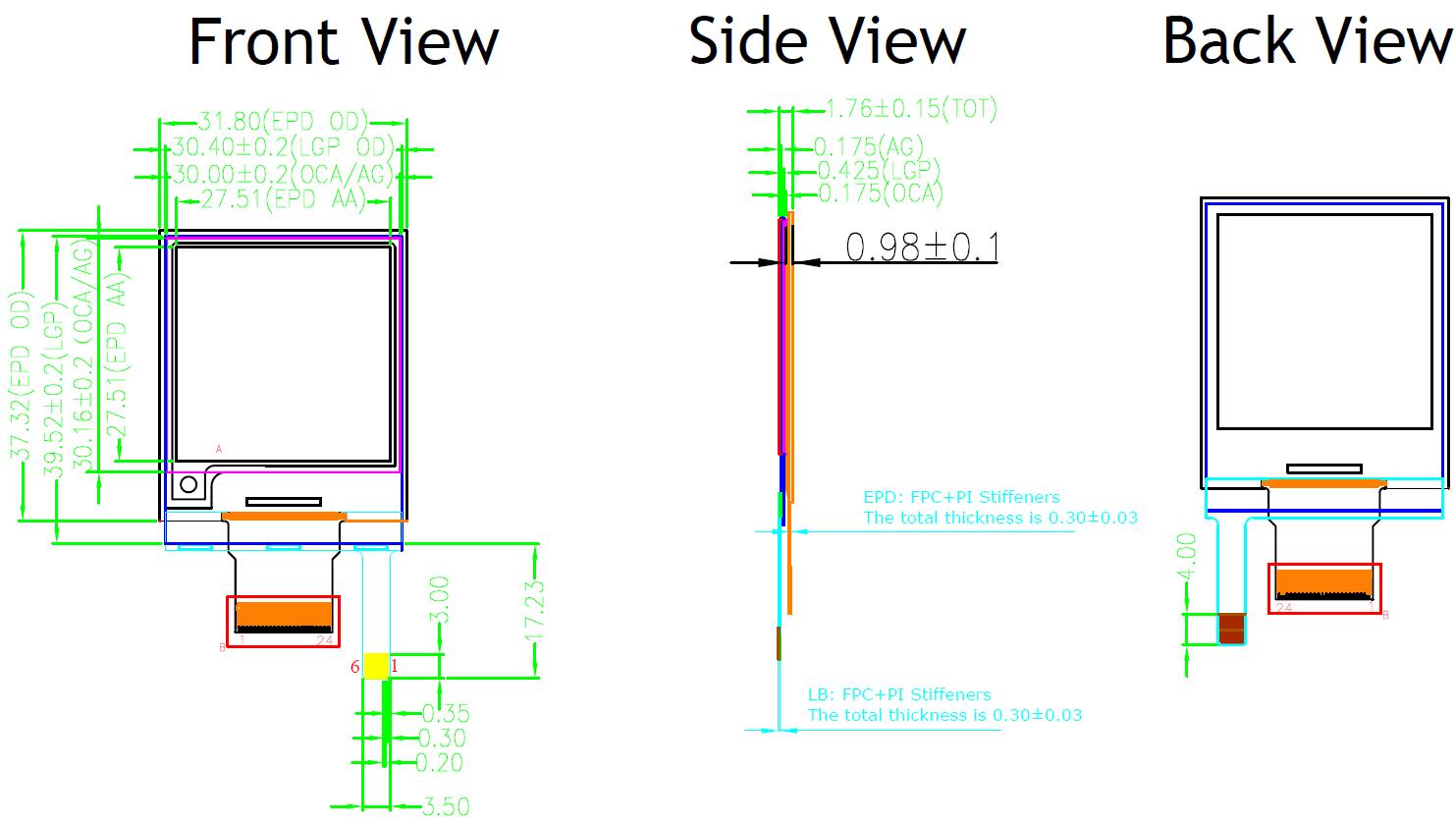

Outline Size(mm)
31.8x37.32x2.0
Actve Size(mm)
27.51x27.51
Pixel Pitch(mm)
0.181x0.181
Operating Temp.
0℃~50℃
Storage Temp.
-25℃~70℃
Connector
24 Pin FPC
Max Grayscale
4
Color
Black,White
Time of refresh(s)
3
Time of partial refresh(s)
0.3
Interface
SPI
Driving voltage
2.8V-3V
Supply voltage of LED frontlight(TYP.)
3V
Power consumption of the e-paper only(mW) 26.4
Power consumption of the front-light(mW) 43.5
Purchase Online buyepaper/AliExpress











Part Number

Color

Full refresh Time

Resolution

Feature

 T/P and Front-light(optional)

GDEH0154D67

BW

2S

200x200

Partial refresh,High Resolution

√

GDEW0154Z04

BWR

8S

200x200

Three colors

√

GDEW0154Z17

BWR

16S

152x152

Three colors

√

GDEW0154C39

BWY

26S

152x152

Three colors

√

GDEW0154I9F

BW

3S

152x152

Flexible

x

GDEM0154E97LT

BW

3S

152x152

Low temperature

√

GDEW0154T8

BW

3S

152x152

Partial refresh,4 Grayscale

√

GDEW0154M09

 BW 0.82S 200x200 Fast speed,High Resolution √









Datasheet-E Paper Display，Controller IC,Connector,Source Code



File Type

Description (Downloadable)

 Version

Language

Update Date

Size
GDEW0154T8-FL Spec.

1.0

English

2019-11-25

2.2MB
IC Driver 1.0 English 2019-07-11 1.78MB
Connector Spec. 1.0 English 2017-08-11 1.77MB
Picture Production and Bitmap Convert 1.0 English 2020-02-04 460.39KB
 Picture Production and Bitmap Convert - 4 Grayscale 1.0 English 2020-02-04 489.09KB
 Readme(SPI interface Partial refresh considerations)               1.0            English       2019-11-19         0.84KB
