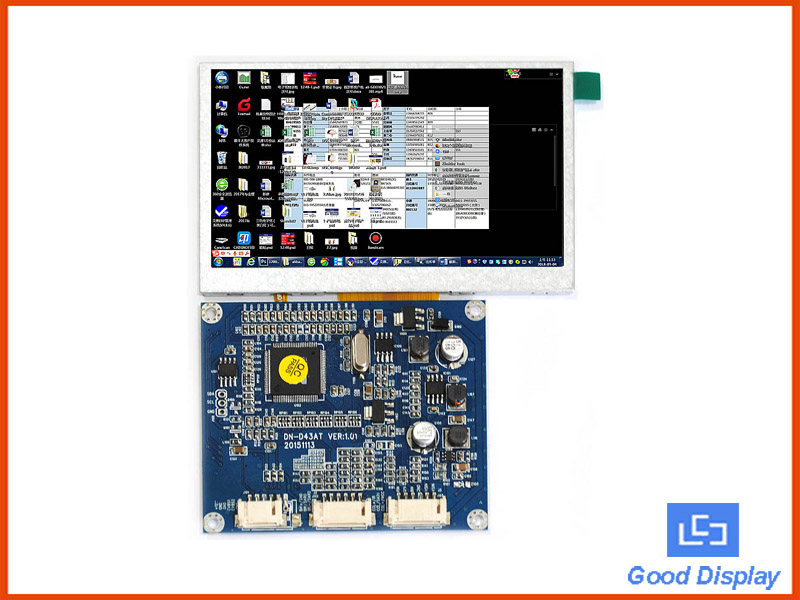

Part Number
|
GDN-D43AT-W043W03Q
|
|
Size
|
4.3''
|
|
Display mode
|
Normally White, Transmissive
|
|
Resolution
|
480(RGB)*272
|
|
Color
|
16.7M color
|
|
Pixel Pitch(mm)
|
0.198*0.198
|
|
Power Supply
|
DC12V(Typ)
|
|
Interface
|
R.G.B 24 bit parallel data
|
|
Viewing Direction
|
55/70/70/70
|
|
Outline Dimension of display(mm)
|
105.5*67.2*3.0
|
|
Dimension of drive board(mm)
|
80.0*67.0*9.2
|
|
Active Area(H*V mm) |
95.04*53.856 |
|
With/Without TSP |
Without TSP |
|
LED Numbers |
7 LED |
|
Luminance |
400cd/m2 |
|
Operating Temp. |
0℃~60℃ |
|
Storage Temp. |
-20℃~70℃ |
|
