Now we've updated the board, so the board will not exceed the outline size of LCD Panel.

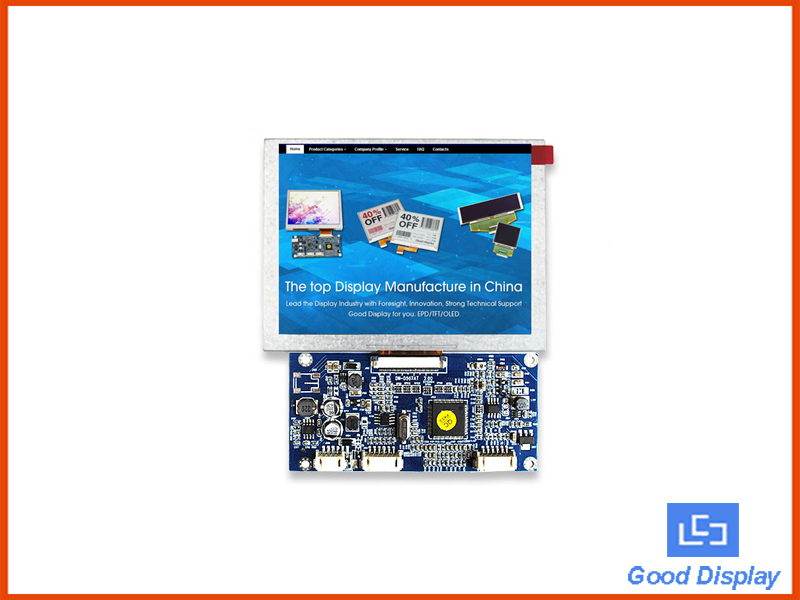

Latest real picture is as following, other parameters are all the same.
5'' Digital TFT LCD Module
This is 5inch open frame lcd monitor with vga and video signal input. OSD control by keyboard.
With superior display quality and wide view angle.
It can be used in any embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful video.
The above price including:
1) 5 inch lcd display *1
2) 12V Power input AD Board support VGA and Video input *1
3) Power & Video input cable with terminal *1
4) Keyboard cable with terminal *1
5) VGA cable with terminal *1
Please note that GDN-D567AT-GTI050NA-08C 2.0 is the updated type of GDN-D567AT-GTI050TN22 and GD567M03-GTI050TN22.
Function and Sizes are all the same, the difference is shown as following:
|
Part Number |
GD567M03-GTI050TN22 |
GDN-D567AT-GTI050NA-08C 2.0 |
|
Size |
5.0''(4:3) |
5.0''(4:3) |
|
Resolution |
640*480 |
640*480 |
|
Brightness |
250cd/m2 |
250cd/m2 |
|
Working Voltage |
DC12V(Typ.) (Min.9V, Max.15V) |
DC12V(Typ.) (Min.9V, Max.15V) |
|
Viewing Angle(U/D/L/R) |
50/70/70/70 |
50/70/70/70 |
|
Signal input |
VGA,VIDEO |
VGA,VIDEO |
|

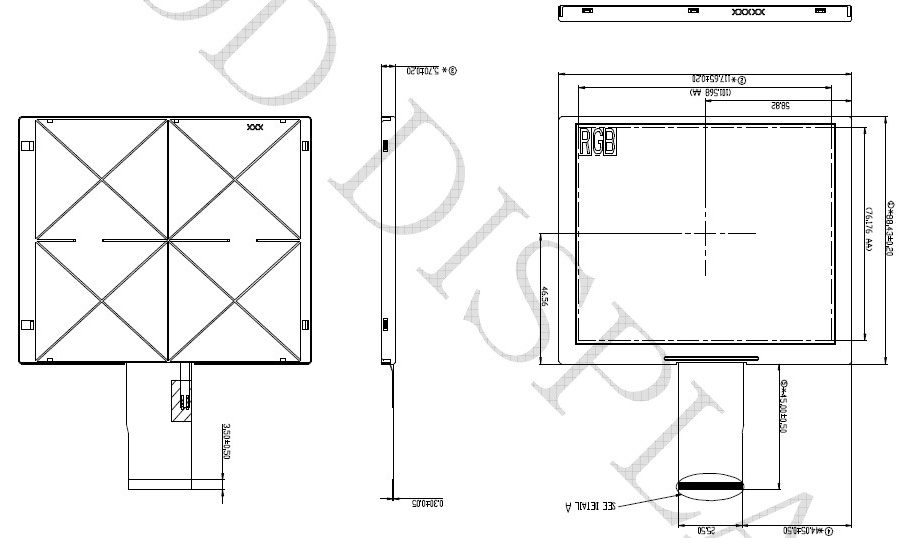

Outside dimension of lcd panel(mm) |
117.65(W)*88.43(H)*5.7(D) |
117.65(W)*88.43(H)*5.7(D) |
|
Active Area of lcd panel(mm) |
101.568(W)*76.176(H) |
101.57(W)*76.18(H) |
|
Structural dimension of PCBA(mm) |
102.0(W)*50.0(H)*7.9(D) |
105.0(W)*50.0(H)*7.8(D) |
|
Backlight |
LED |
LED |
|
Operating temperature |
-10C~+60C |
-10C~+60C |
|
Storage temperature |
-20C~+70C |
-20C~+70C |
Main Difference:FPC Location
|
FPC Location
|
Top or Bottom
|
Middle or Right
|
|
Old Version Panel
|
Bottom
|
Right
|
|
New Version Panel
|
Top
|
Middle
|
|
Solution
|
Through Image Upside Down Function
180 degree rotate whole image.
|
Leave enough room for board location change
When designing your cover.
|
New Version:

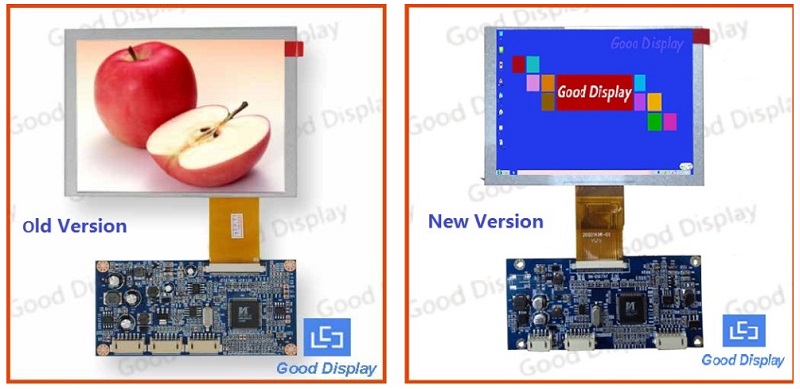

Whole Module Picture Compare:(Without cables, because cables and board are all the same.Please pay attention to board location.)
