  • Product Name: 4.3 inch 800x480 Resolution Raspberry Pi TFT LCD Display HDMI Driver Board, (Optional Touch Screen) GDTE043A1-7
  • Code: 80431-2
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 17

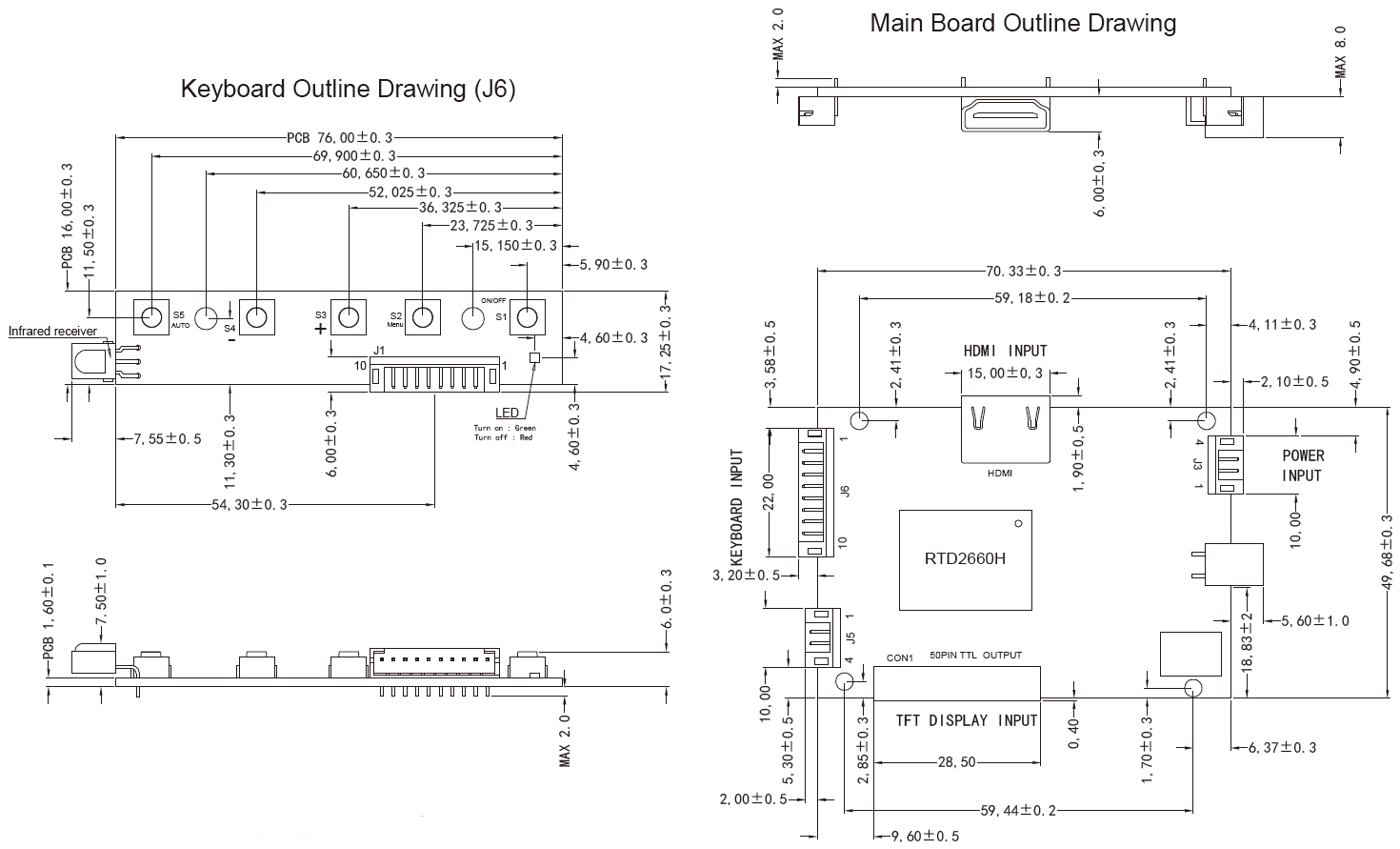

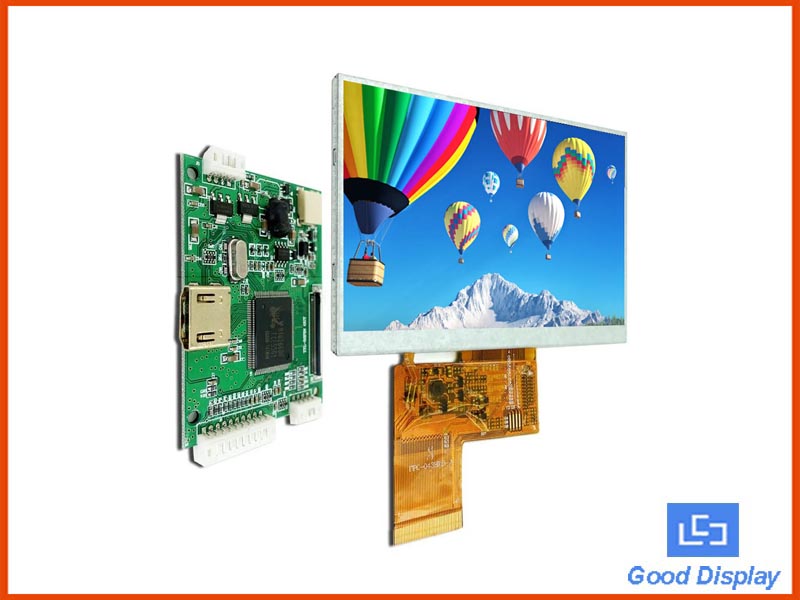

GDTE043A1-7 is 800x480 dots 4.3" color tft lcd module display full viewing angle with small HDMI signal driver board,optional 4-wire resistive touch panel with USB driver board and cable, optional capacitive touch panel with USB controller board and cable, optional remote control,superior display quality,super wide view angle.It can be used in any embedded systems,car,industrial device,security and hand-held equipment which requires display in high quality and colorful video. It's also ideal for Raspberry PI by HDMI.

Attention:
Power adaptor should be 5V/2000mA in output and center pin for positive voltage and the outer shield for negative voltage .The temperature for controller RTD2660 would increase during working.That's normal phenomenon,not quality problem.
When lose signal,the screen is blue or black that is available in the menu setting.There is no snowy screen or white noise in setting menu.










·  HDMI Interface
·  Full Viewing Angle 80°/80°/80°/80°(L/R/U/D)
·  It's ideal for Raspberry PI by HDMI
·  Optional 4.3 inch 4-wire resistive touch panel with USB driver board and cable
·  Optional capacitive touch panel with USB controller board and cable
·  Optional remote control

Optional Accessory List:

*If you need the below accessories, please contact us.*







Part number
GDTE043A1-7
Size
4.3 inch
Resolution
800x(RGB)x480 Dots
Display Connector
FPC
FPC Connector
40 Pin 0.5mm Pitch Bottom Contact ZIF Connector
Operating Temperature
-20~+70 ℃
Storage Temperature
-30~+80℃
Touch Panel Optional
Yes
Sunlight Readable
No

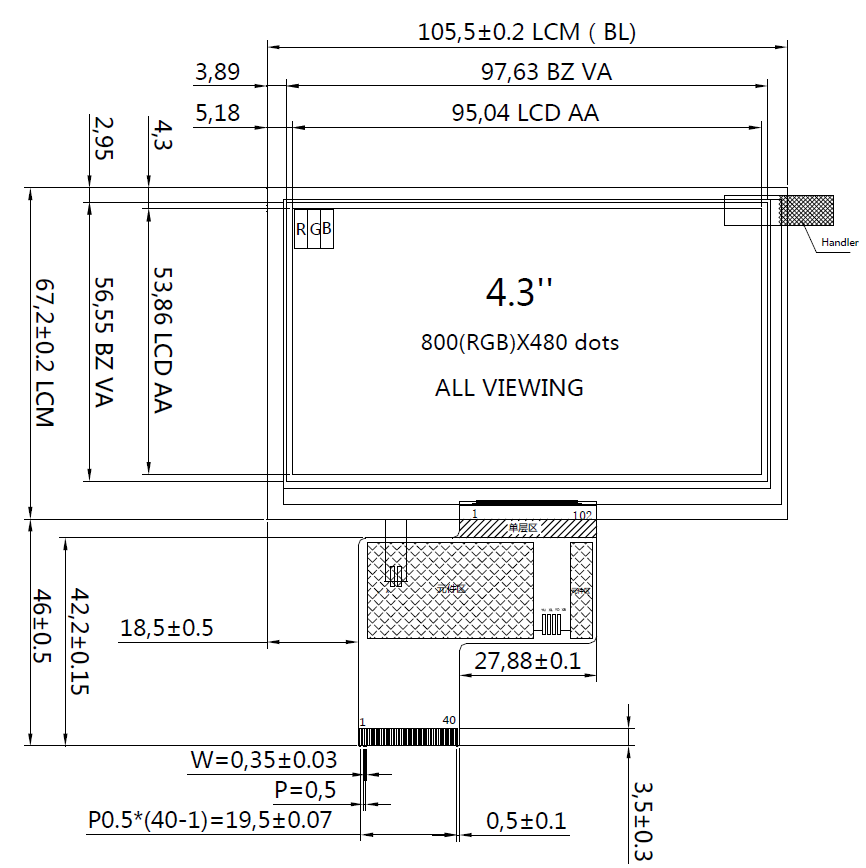

Outline Dimension for TFT Display(mm)
105.5(W)X67.20(H)x2.8(T)
Active Area(mm)
97.63X56.55
Pixel Size (mm)
0.1188(W)x0.1122(H)
IC Package
COG
Controller
HX8264
Interface
HDMI
Response Time (Typ)
15ms
LCD Type
TFT-LCD / Transmissive / IPS
Viewing Angle Range
80°/80°/80°/80°(L/R/U/D)
Colors
65K/262K/16.7M
Contrast Ratio (Typ)
500:1
Brightness (Typ)
350cd/m2
Purchase Online buyepaper







Datasheet for TFT LCD Display
File Type

Description (Downloadable)

Version

Language

Update Date

Size

GDTE043A1-7

1.0

English

2020-04-27

2.2MB





Datasheet for Capacitive Touch Panel and USB Controller Board

File Type

Description (Downloadable)

Version

Language

Update Date

Size

GDTE043-3-USB Capacitive Touch Panel Drawing

1.0

English

2020-04-22

2.2MB





Datasheet for Resistive Touch Panel,Connector

File Type

Description (Downloadable)

Version

Language

Update Date

Size

 4.3 inch 4-Wire Touch Panel GDTE043-3 Datasheet

1.0

English

2020-04-22

3.825MB

USB Port Resistive Touch Panel Driver Board GDTE-USB04W-1 Datasheet 1.0 English 2020-04-13 2.643MB
 USB Port Resistive Touch Panel Driver Board Setup Program 1.0 English 2020-04-13 258KB
