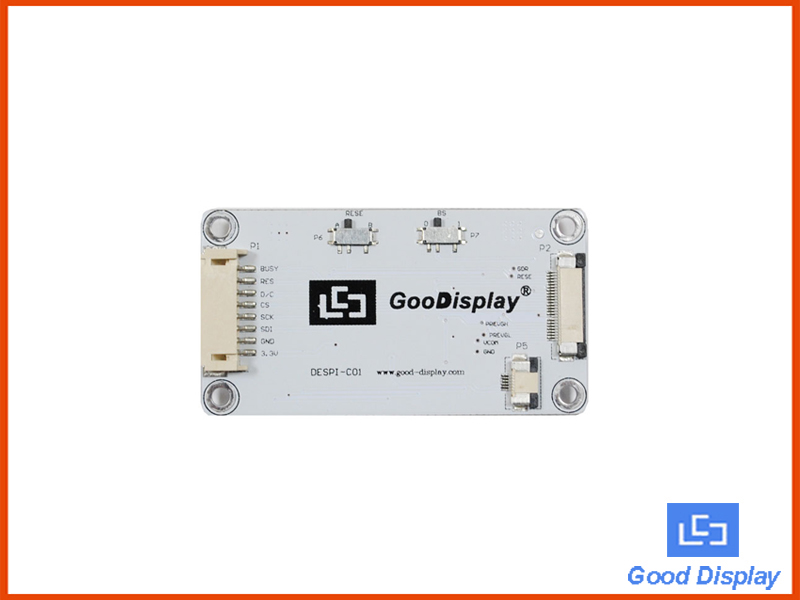

E Paper display connection adapter board connect HAT Raspberry PI: DESPI-C01
  • Product Name: E Paper display connection adapter board connect HAT Raspberry PI: DESPI-C01
  • Code: DESPI-C01
  • Quantity in stock: --
  • Retail price:
  • Unit of measurement: --
  • Net weight: --
  • Views : 1739

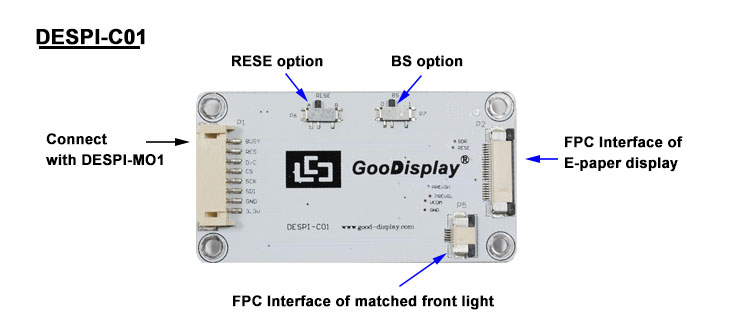

This connection board DESPI-C01 is aim to help  users to learn how to use the E-paper Display
easier, and it is used for 1.54'', 2.04'', 2.13'', 2.7'', 2.9'', 4.2'', 5.83'', 7.5'' e-paper display.
And it is also added the functions of Raspberry Pi and power supply of front light ect.







· Built-in update display function.
· Raspberry Pi
· For SPI interface EPD
· Power supply of front light








Part Number

DESPI-C01

Platform

STM32

Function

Connection E-paper Display with DESPI-M01

Suitable Size

1.54/2.04/2.13/2.7/2.9/4.2/5.83/7.5''

Interface

Raspberry Pi

Power Input

DC3.3V

Feature

Fully and Partial refresh

Outside Dimension

65x35mm

Operating Temp

-20~70℃
Purchase Online

buyepaper











RESE To 0.47 Ω：
2.2.13 inch E-Paper Display:  GDEW0213T5,GDEW0213Z16,GDEW0213I5F,GDEW0213C38,GDEW0213V7LT
3.2.6 inch E-Paper Display: GDEW026T0,GDEW026Z39
4.2.7 inch E-Paper Display:  GDEW027W3  GDEW027C44
5.2.9 inch E-Paper Display:  GDEW029T5,GDEW029Z10,GDEW029I6F
6.3.71 inch E-Paper Display: GDEW0371W7,GDEW0371Z80
7.4.2 inch E-Paper Display:  GDEW042T2,GDEW042Z15,GDEW042C37
8.5.83 inch E-Paper Display:  GDEW0583Z21,GDEW0583C64
9.7.5 inch E-Paper Display:  GDEW075Z09,GDEW075C21

RESE To 3 Ω：
1.1.54 inch E-Paper Display:GDEH0154D67,GDEM0154E97LT
2.2.04 inch E-Paper Display: GDE021A1
3.2.13 inch E-Paper Display: GDEH0213D30LT,GDEH0213B73
4.2.9 inch E-Paper Display: GDEH029A1,GDEH029D56LT
5.5.83 inch E-Paper Display: GDEW0583T7
6.7.5 inch E-Paper Display: GDEW075T8

DEMO does not provide electronic paper screen, the screen must be purchased separately









File Type

Description (Downloadable)

                  Version

               Language

       Update Date

       Size

DESPI Specification

                   1.0

               English

       2018-01-25

      673.62KB

DESPI-C01-SCH

                    1.0                English        2018-01-25         701.28KB
