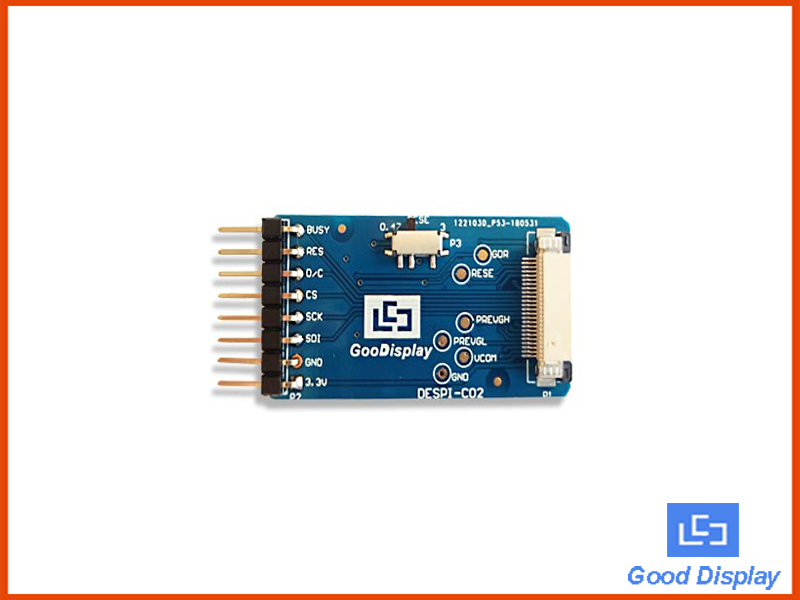

Connection adapter board HAT connect for e-Paper display DESPI-C02
  • Product Name: Connection adapter board HAT connect for e-Paper display DESPI-C02
  • Code: DESPI-C02
  • Quantity in stock: --
  • Retail price:
  • Unit of measurement: --
  • Net weight: --
  • Views : 2035









This connection board DESPI-C02 is aim to help  users to learn how to use the E-paper Display easier, and it is used for Good Display's black-white E-paper Display and three-color (black, white and red/Yellow) : 1.54'', 2.04'', 2.13'', 2.6'', 2.7'', 2.9'', 3.71'', 4.2'', 5.83'' and 7.5''.







Part Number

DESPI-C02

MCU

STM32

Function

Connecting E-paper Display

Outside Dimension
41x22mm (DESPI-C02)

Power Input

DC3.3V

Feature

Full and Partial refresh

Operating Temp

-20~70℃

Purchase Online

buyepaper /AliExpress

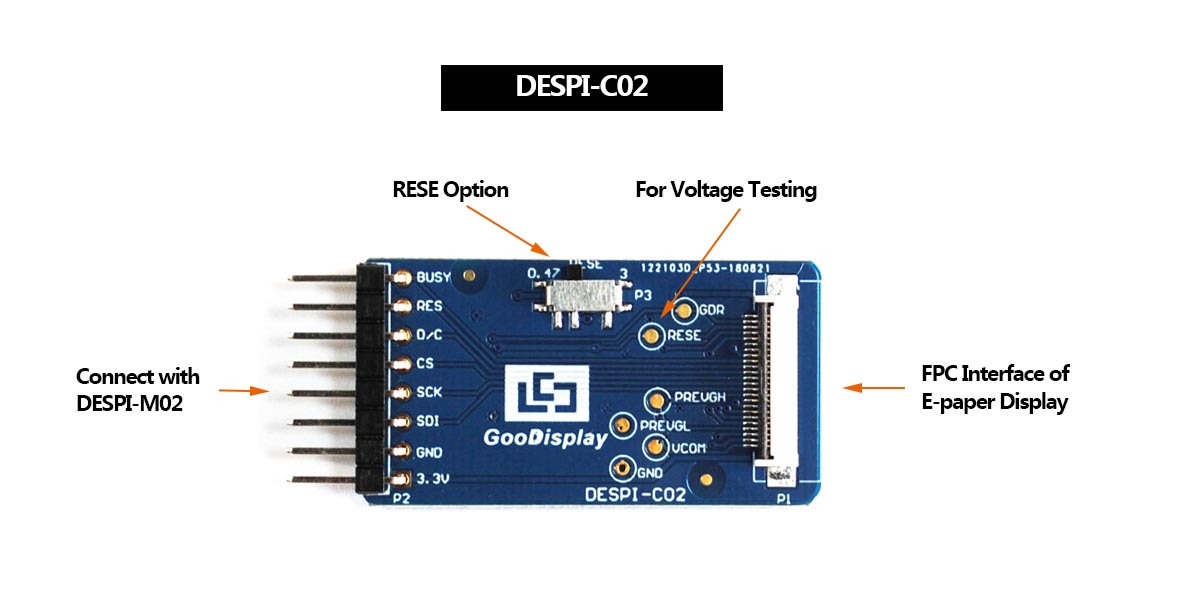

RESE To 0.47 Ω：
2.2.13 inch E-Paper Display:  GDEW0213T5,GDEW0213Z16,GDEW0213I5F,GDEW0213C38,GDEW0213V7LT
3.2.6 inch E-Paper Display: GDEW026T0,GDEW026Z39
4.2.7 inch E-Paper Display:  GDEW027W3  GDEW027C44
5.2.9 inch E-Paper Display:  GDEW029T5,GDEW029Z10,GDEW029I6F
6.3.71 inch E-Paper Display: GDEW0371W7,GDEW0371Z80
7.4.2 inch E-Paper Display:  GDEW042T2,GDEW042Z15,GDEW042C37
8.5.83 inch E-Paper Display:  GDEW0583Z21,GDEW0583C64
9.7.5 inch E-Paper Display:  GDEY075T7,  GDEY075Z08

RESE To 3 Ω：
1.1.54 inch E-Paper Display:GDEH0154D67,GDEM0154E97LT
2.2.04 inch E-Paper Display: GDE021A1
3.2.13 inch E-Paper Display: GDEH0213D30LT,GDEH0213B73
4.2.9 inch E-Paper Display: GDEH029A1,GDEH029D56LT
5.5.83 inch E-Paper Display: GDEW0583T7
6.7.5 inch E-Paper Display: GDEM075F52

This DEMO KIT does not provide electronic paper screen, the screen must be purchased separately





File Type

Description (Downloadable)

                  Version

               Language

       Update Date

       Size

DESPI Specification

                   1.0

               English

       2018-07-12

      673.62KB

DESPI-C02-SCH

                    1.0                English        2018-07-12         701.28KB

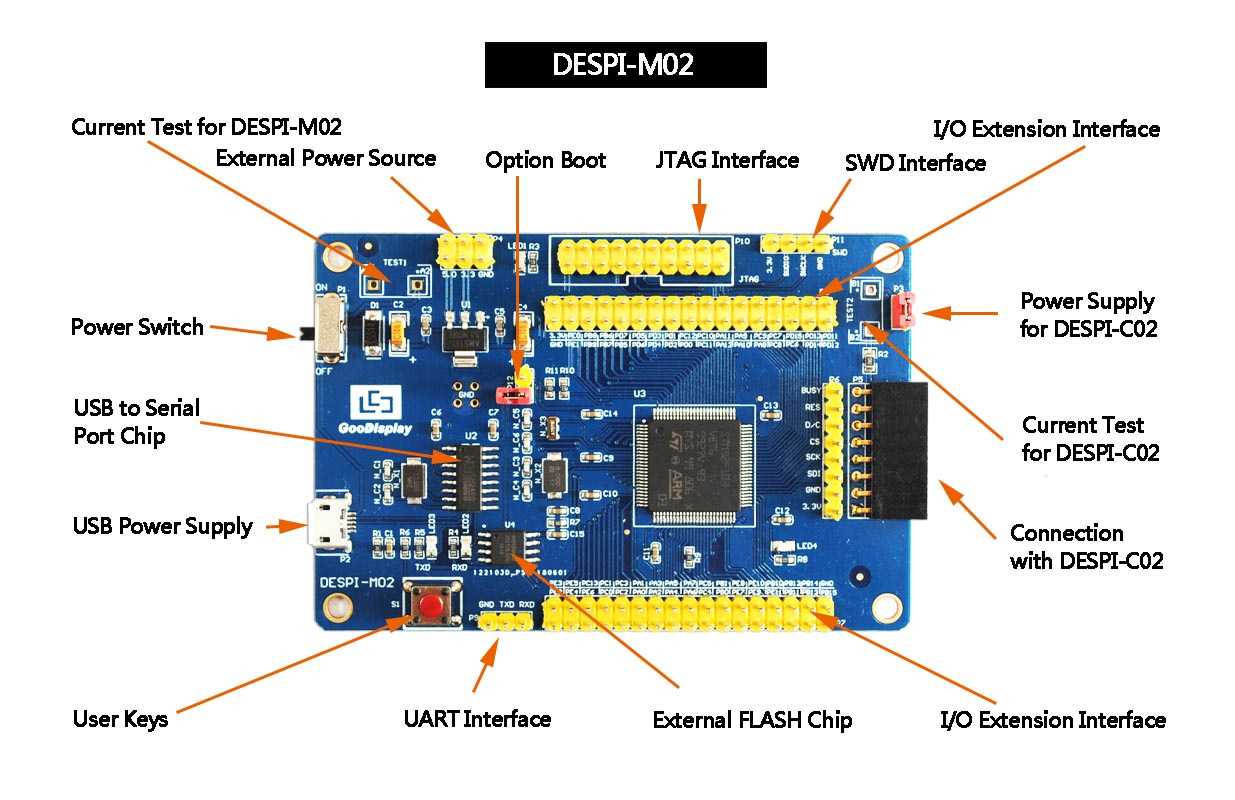

DESPI-M02-SCH                    1.0                English        2018-07-12         1.2MB
