Your present location:Home >> T/P Front-light >> 2.7 inch e-paper display with touch screen color e-paper SPI epaper touch screen eink black white and red GDEW027C44-T
  • Product Name: 2.7 inch e-paper display with touch screen color e-paper SPI epaper touch screen eink black white and red GDEW027C44-T
  • Code: 02704
  • Quantity in stock: --
  • Retail price:
  • Unit of measurement: --
  • Net weight: --
  • Views : 873

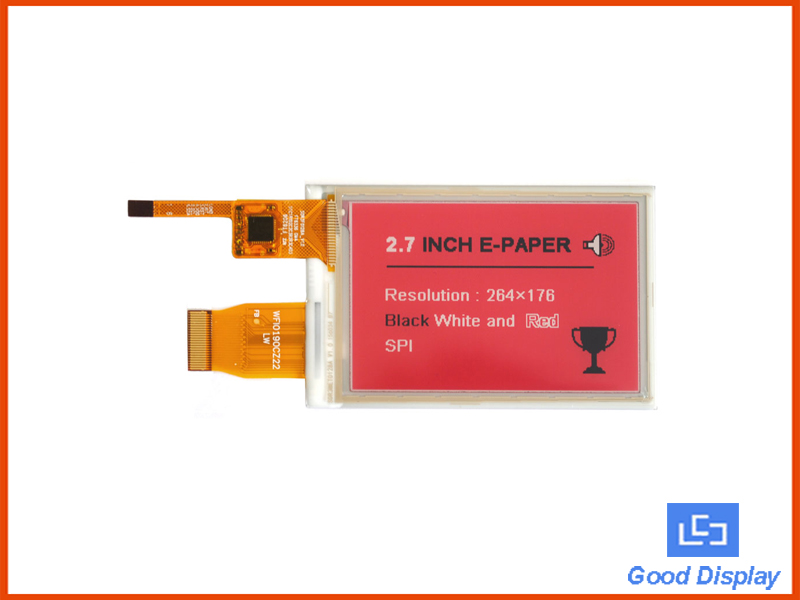

This is a 2.7 inch E ink E paper display with capacitive touch screen, 264*176 resolution, 24 pins FPC connection, optional FPC connector, communicating via SPI interface, with embedded controller(COG package) and on-chip stored waveform,  supports black, white and red.

In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEW027C44-T is a very good choice for applications like:

· Shelf label
· Smart tags
· Smart home application
· Industrial instrument
· IED
· And other related products.
Note: All of 3-color epaper doesn't support partial refesh.



Three colors, black, white and red
264x176 resolution
With touch screen

Development platform available STM32 / Arduino / Raspberry Pi / ESP8266






Part Number

GDEW027C44-T

Type

Dot Matrix

Resolution

264*176(DPI:117)

Outline Size(mm)

70.42*45.8*1.3

Active Size(mm)

57.288*38.192

Pixel Pitch(mm)

0.217*0.217

Operating Temp.

0℃~+50℃

Storage Temp.

-25℃~+70℃

Connector

24 Pin FPC, Pitch:0.5mm

Color

Black,White,Red

Interface

SPI

Time of refresh(s) 16
Power consumption of the e-paper only(mW) 26.4
Power consumption of the touch screen(mW) 14.3
Purchase Online

buyepaper












Part Number

Color

Feature

Full refresh time

T/P(optional)
GDEW027W3 Black, White Partial refresh, 4 Grayscale 3s
GDEW027C44 Black,White,Red Three colors 16s
GDEW027H64 Black,White,Yellow Three colors 16s
GDEW027W3-T Black,White Partial refresh, Touch screen, 4 Grayscale 3s
GDEW027C44-T Black,White,Red Three colors, Touch screen 16s
