32 inch parallel e ink display, largest e-paper display, GDEP312TT2-D
  • Product Name: 32 inch parallel e ink display, largest e-paper display, GDEP312TT2-D
  • Code: 3201
  • Quantity in stock: --
  • Retail price: --
  • Unit of measurement: --
  • Net weight: --
  • Views : 2694

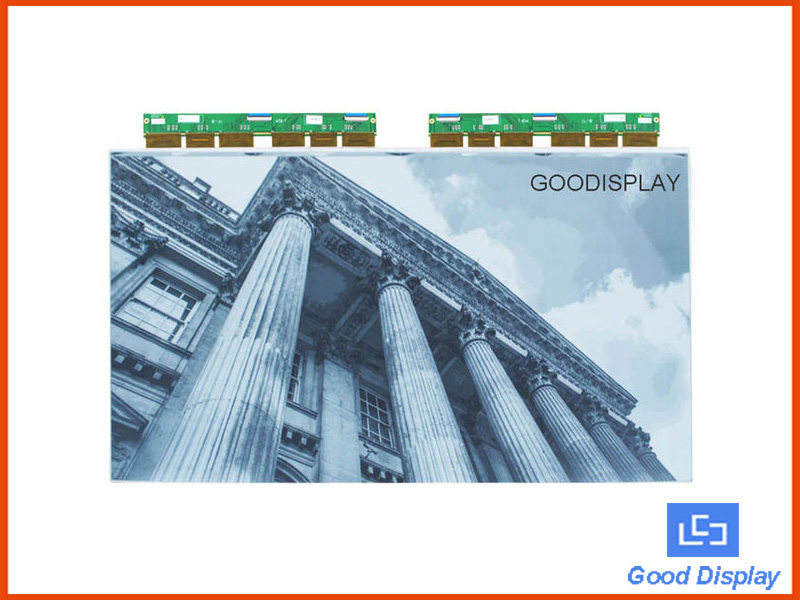

This is a 31.2 inch large Parallel E-ink E paper display module based on active matrix TFT substrate with 50 Pins, 2560*1440 resolution. It is capable to display images at 2 to 16 gray levels(1 to 4 bits) depending on the display controller and the associated wavefrom file it used.

In view of so many advantages: ultra low power consumption, ultra wide view angle, readable under sunlight, GDEP312TT2-D is a very good choice for applications like:

· Display board in supermarket
· Industrial application
· And other related products.






· High contrast reflective/electrophoretic technology
· Ultra low power consumption, basically power is only required for refreshing.
· Parallel Interface
· Come with specification





Part Number

GDEP312TT2-D

Type

Dot Matrix

Resolution

2560(H)*1440(V)

Outline Size(mm)

697.2(H)*402.8(V)*0.805(D)

Active Size(mm)

691.2(H)*388.8(V)

Pixel Pitch(mm)

0.27(H)*0.27(V)
Operating Temp. 0~50C

Storage Temp.

-25C~70C
Interface Parallel
Max Grayscale 16
Color Black,White






Datasheet-E Paper Display，Controller IC,Connector,Source Code

File Type

Description (Downloadable)

 Version

Language

Update Date

Size
GDEP312TT2-D Specifications

1.0

English

2018-09-10

1.08MB








File Type

Description (Click to see more)

Language

 Update Date
The Principle and Advantage of E-Paper English 2012-10-25
Matrix E-ink Display -- FAQ English 2018-11-13
Matrix E-ink Display -- FAQ Pt. 2 English 2018-11-13
Warranty English 2016-10-25











Size

Part Number

Color

Refresh Time

Resolution

Feature

1.02”

GDEW0102I4F

Black, White

--

128*80

Flexible

1.43”

GDEP014TT1

Black, White

--

296*128

Flexible

1.54”

GDEH0154D27FL

Black, White

6.29S

200*200

Partial refresh/Frontlight

GDEM0154E97LT

Black, White

2.15S

152*152

Ultra low temperature

GDEW0154Z17

Black,White,Red

3.49S

152*152

Three colors

2.13”

GDEW0213I5F

Black, White

--

212*104

Flexible/Partial refresh

GDEW0213V7LT

Black, White

--

212*104

Ultra low temperature

GDEW0213Z16

Black,White,Red

10.53S

212*104

Three colors

GDEW0213C38

Black,White,Yellow

--

212*104

Three colors

2.6”

GDEW026T0

Black, White

2.62S

296*152

Partial refresh

2.7”

GDEW027W3-T

Black, White

2.3S

264*176

Partial refresh/touch screen

GDEW027C44-T

Black,White,Red

15.91S

264*176

Three colors/touch screen

2.9”

GDEW029Z10

Black,White,Red

14.12S

296*128

Three colors

GDEH029D56LT

Black, White

2.83S

296*128

Ultra low temperature

GDEW029I6F

Black, White

--

296*128

Flexible/ Partial refresh

3.71”

GDEW0371W7

Black, White



416*240

Partial refresh

4.2”

GDEW042T2

Black, White

6.2S

400*300

Partial refresh

GDEW042Z15

Black,White,Red

14.54S

400*300

Three colors

4.3”

GDE043A2

Black, White

--

800*600

parallel

5.83”

GDEW0583T7

Black, White

1.12S

600*448

SPI

6.0”

GDE060BAFL-T

Black, White

--

800*600

Parallel/Touch/Frontlight

GDE060F3

Black, White

--

1024*758

Parallel/High Resolution

7.5”

GDEW075Z09

Black,White,Red

14.87S

640*384

Three colors

8.0”

GDEW080T5

Black, White

--

1024*768

parallel

9.7”

GDEP097TC2

Black, White

--

202.8×139.425

parallel

12.48”

GDEW1248T3

Black, White

--

1304*984

SPI/Large size

13.3”

GDEP133UT1

Black, White

--

1600x1200

parallel/Large size

31.2”

GDEP312TT2-D

Black, White

--

2560*1440

parallel/Large size
